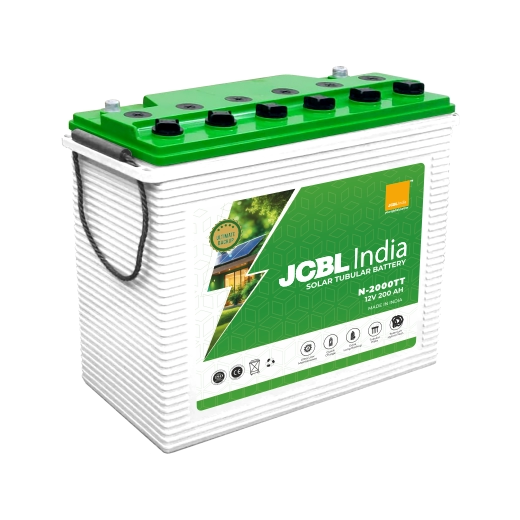

High Performance Lead Acid Tubular (Solar/Inverter) Batteries

High Performance Lead Acid Tubular (Solar/Inverter) Batteries

High Performance Lead Acid Tubular (Solar/Inverter) Batteries

Key Features

  • Robust Tubular Plate Technology
  • Superior Charge Acceptance
  • Trusted Design
  • Ceramic Plug with Level Indicator
  • Low Maintenance
  • Life Cycle Excellence
Contact Us

Applications

  • UPS
  • Inverter
  • Solar
  • Telecommunication

Conditions of Fully Charged

  • Make sure total Ah input is completed (Amp × Duration = Input Ah).
  • 3 consecutive hourly readings of specific gravity and voltage become constant.
  • Top of charge voltage will be around 15.5V – 16.5V.
  • All cells should gas freely.
  • Specific gravity of electrolyte in fully charged condition: 1.250 ± 0.005.

Models & Technical Specifications

Nominal Voltage (V) Model Name Capacity (AH) C20 Capacity (AH) C10 Container Length (mm) Width (mm) Height (mm) Cell Layout & Terminals
12 JCBL TT 1100 100 90 IT 482 183 390 A1 / E
12 JCBL TT 1500 150 135 IT 482 183 390 A1 / E
12 JCBL TT 1800 180 160 IT 482 183 390 A1 / E
12 JCBL TT 2000 200 180 IT 482 183 390 A1 / E
12 JCBL TT 2200 220 200 IT 482 183 390 A1 / E
12 JCBL TT 2400 240 220 IT 482 183 390 A1 / E
12 JCBL TT 2600 260 240 IT 482 183 390 A1 / E
12 JCBL TT 3000 300 280 IT 482 183 390 A1 / E
*Special Note: Tolerance for weight, volume is +/- 3% and dimension is +/- 5mm. Specifications are subject to change without notice.

Description

Applications

  • UPS
  • Inverter
  • Solar
  • Telecommunication

Conditions of Fully Charged

  • Make sure total Ah input is completed (Amp × Duration = Input Ah).
  • 3 consecutive hourly readings of specific gravity and voltage become constant.
  • Top of charge voltage will be around 15.5V – 16.5V.
  • All cells should gas freely.
  • Specific gravity of electrolyte in fully charged condition: 1.250 ± 0.005.

Reviews

There are no reviews yet.

Be the first to review “High Performance Lead Acid Tubular (Solar/Inverter) Batteries”

Your email address will not be published. Required fields are marked *

Models & Technical Specifications

Nominal Voltage (V) Model Name Capacity (AH) C20 Capacity (AH) C10 Container Length (mm) Width (mm) Height (mm) Cell Layout & Terminals
12 JCBL TT 1100 100 90 IT 482 183 390 A1 / E
12 JCBL TT 1500 150 135 IT 482 183 390 A1 / E
12 JCBL TT 1800 180 160 IT 482 183 390 A1 / E
12 JCBL TT 2000 200 180 IT 482 183 390 A1 / E
12 JCBL TT 2200 220 200 IT 482 183 390 A1 / E
12 JCBL TT 2400 240 220 IT 482 183 390 A1 / E
12 JCBL TT 2600 260 240 IT 482 183 390 A1 / E
12 JCBL TT 3000 300 280 IT 482 183 390 A1 / E
*Special Note: Tolerance for weight, volume is +/- 3% and dimension is +/- 5mm. Specifications are subject to change without notice.
