A fully charged 12V AGM battery should read somewhere in the range of 12.85V to 13.0V at rest. Voltage lower than this range means that the battery is partially discharged or weak, which may cause problems to your starting system and electrical performance.
This guide explains the AGM battery voltage chart, normal voltage ranges for car and motorcycle AGM batteries, and how to measure voltage correctly to avoid long-term damage.
Why AGM Battery Voltage Matters
The AGM battery voltage is the fastest and surest method of judging the health of a battery and state of charge (SoC).
Since the voltage conditions are normal, the engine fires up smoothly, and the electronics all function properly. When the voltage drops, problems appear almost immediately.
- Low voltage is the most common cause of an AGM battery failure.
- Poor cranking or no start
- Dimming of headlights and blinking dashboard lights
- Headlight or horn malfunctioning, fuel pump malfunction, sensor failure
Poor voltage is another consequence that takes its toll on charging performance. A weak AGM battery has difficulty accepting or holding a charge, assuming the alternator or charger is working correctly.
If you want a better understanding of how AGM batteries work overall, refer to our AGM battery basics guide.
12V AGM Battery Voltage Chart
The table below shows a 12V AGM battery voltage chart based on resting voltage.
Resting voltage indicates that the battery has not been charged or used for several hours.

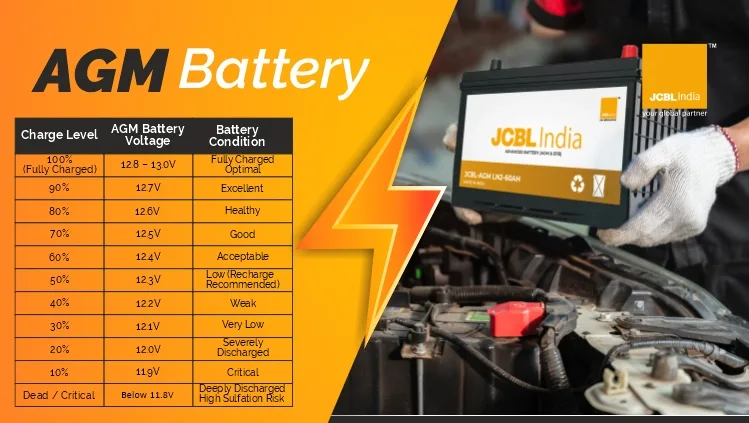

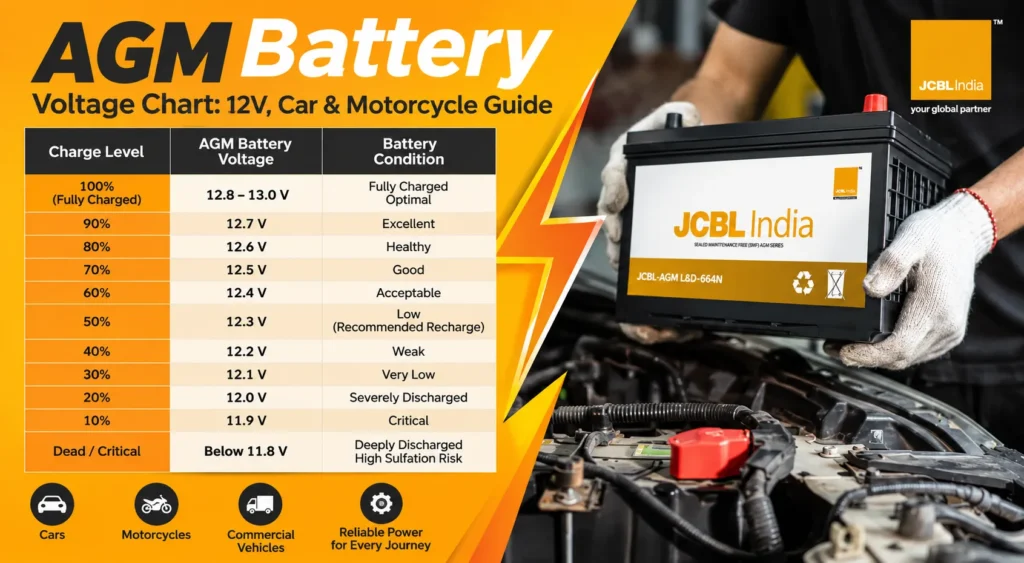

12V AGM Battery Voltage Chart (Resting State)
| Charge Level | AGM Battery Voltage | Battery Condition |
| 100% (Fully Charged) | 12.8 – 13.0V | Fully Charged / Optimal |
| 90% | 12.7V | Excellent |
| 80% | 12.6V | Healthy |
| 70% | 12.5V | Good |
| 60% | 12.4V | Acceptable |
| 50% | 12.3V | Low (Recharge Recommended) |
| 40% | 12.2V | Weak |
| 30% | 12.1V | Very Low |
| 20% | 12.0V | Severely Discharged |
| 10% | 11.9V | Critical |
| Dead / Critical | Below 11.8V | Deeply Discharged / High Sulfation Risk |
Key takeaway: An AGM battery below 12.2V is already weak. Readings below 11.8V usually indicate permanent damage if not corrected quickly.
Motorcycle vs Car AGM Voltage Levels
Motorcycle and Car AGM batteries follow the same voltage chart, but their capacity and discharge behavior are very different.
Car AGM Batteries
- Larger capacity
- Lose voltage slowly when parked
- Can support accessories and longer idle periods
Motorcycle AGM Batteries
- Smaller capacity
- Lose charge faster during storage
- Sensitive to short rides and cold weather
Real-world example:
A car AGM battery may still read 12.6V after sitting for a week, while a motorcycle AGM battery can drop to 12.2V or lower at the same time.
This faster voltage drop is why motorcycle batteries often fail after storage or infrequent riding. Using a proper motorcycle AGM battery charger helps maintain healthy voltage levels.
How to Measure AGM Battery Voltage
Correct testing is essential for accurate AGM battery voltage readings.
Step-by-Step Voltage Test
- Turn off the engine and all electrical accessories
- Let the battery rest for 2–4 hours
- Set a multimeter to DC voltage (20V range)
- Place the red probe on the positive terminal
- Place the black probe on the negative terminal
- Read the voltage displayed
Safety Warning
- Never allow tools to touch both terminals
- Avoid testing with wet hands
- Ensure probes are firmly placed
What Low and High Voltage Mean
Low AGM Battery Voltage (Below 12.2V)
- Hard starting or no start
- Weak or flickering lights
- Battery drains quickly
Repeated low voltage causes permanent capacity loss and shortens AGM battery life.
High AGM Battery Voltage (Above 13.0V at rest)
- Signs of overcharging
- Battery overheating
- Long-term internal damage
Common Voltage Testing Mistakes
Incorrect AGM voltage readings are often caused by simple mistakes:
- Testing immediately after driving or riding
- Measuring voltage while the battery is charging
- Not allowing enough resting time
- Loose or unstable multimeter probes
- Testing in cold conditions without waiting
Avoiding these errors ensures reliable results and better battery decisions.
FAQs
Normal AGM battery voltage at rest is 12.6V to 13.0V. This range indicates a healthy, fully charged 12V AGM battery.
Yes. A reading of 12.1V means the AGM battery is under 30% charged and may already cause starting problems if not recharged soon.
Low voltage can often be fixed by proper charging if caught early. Batteries below 11.8V may suffer permanent damage.
Wait at least 2–4 hours after driving or charging to measure true resting voltage.
Yes. Cold temperatures temporarily lower AGM battery voltage and can make weak batteries fail faster.
